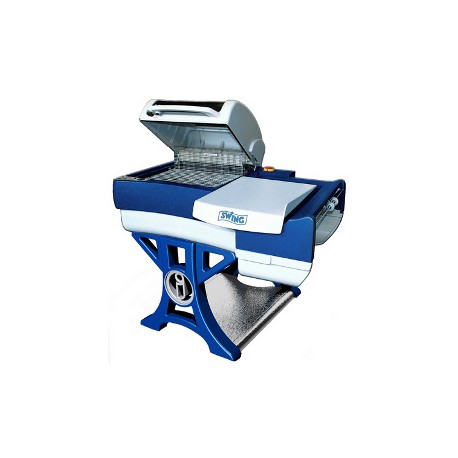

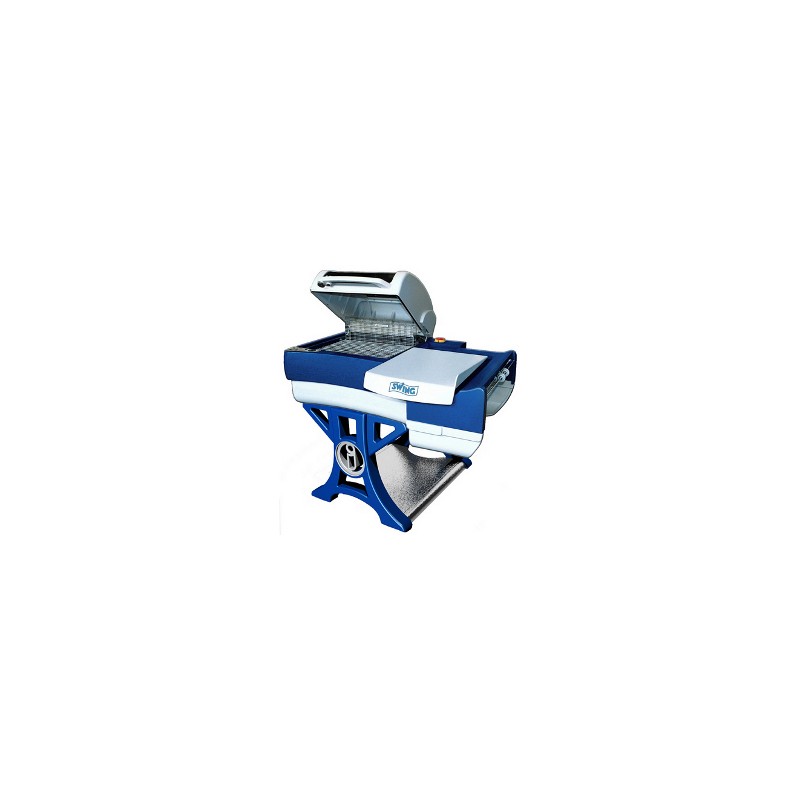

HEAT SHRINKER SWING 4255

SWING 4255 THERMAL SHRINKER

THE FIRST SHRINKER COMPLETELY IN TECHNOPOLYMER. SwingPAT is a new “concept” of shrink wrapper, a new way of interpreting the heat-shrinkable packaging machine, creating a surprising change of image and structural material, thus giving the machine an inimitable image, but also improving the qualitative and technological level of the entire machine. and optimizing the entire manufacturing process.

• Bell system.
• An advanced multifunction control system from R&D ITALDIBIPACK.
• Completely electronic control of the work cycle.
• Digital control panel built into the side of the hood.
• 8 possible memorizable operating programs.
• Welding dimensions L x W: 420 x 550 mm
• Welding system: 250 mm.
• Maximum coil length DIA x W: 250/600 mm
• The machine works with PVC (BLUE FILM), heat-sealed polyolefin film
• Productivity: 200/400 pz/h
• Possibility of activating retraction at the end of welding.
• Automatic regulation of welding time (the machine
• automatically adjusts the welding time in relation to
• with packaging speed).
• Hood closure maintenance system by
• retraction time (adjustable).
• Possible to leave the hood after the ventilation stops
• to eliminate the release of hot air at the end of the cycle.
• Cooling system by thermostatting the bars
• solder included.
• Stand-by function after a period of non-use.
• Piece counter included.
• Concave shape of the machine to allow better working conditions for the operator.
• Supply voltage: 240 V – 1 PH.
• Installed power: 3.5 kW.
• Machine dimensions L x W x H: 1250 x 800 x 640 mm.
• Work table height: 930 mm.
• Machine weight: 75 kg
• Cart with wheels included.
