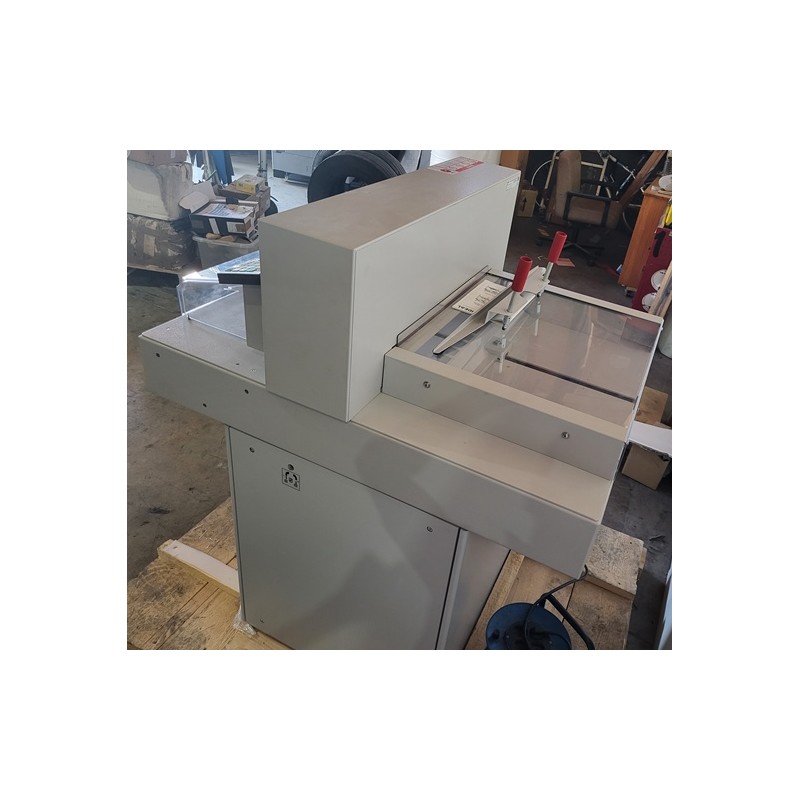

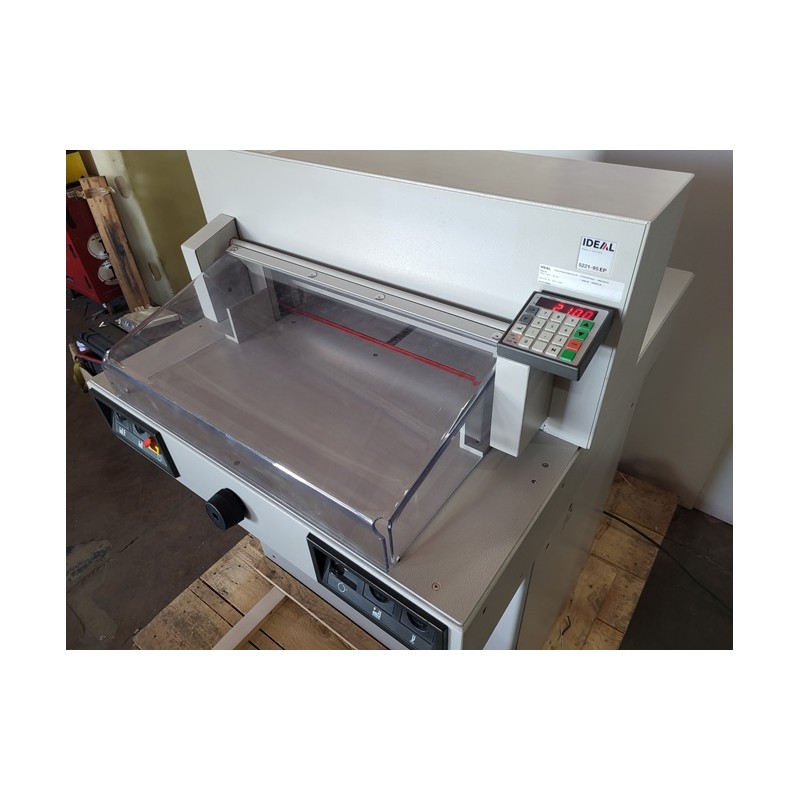

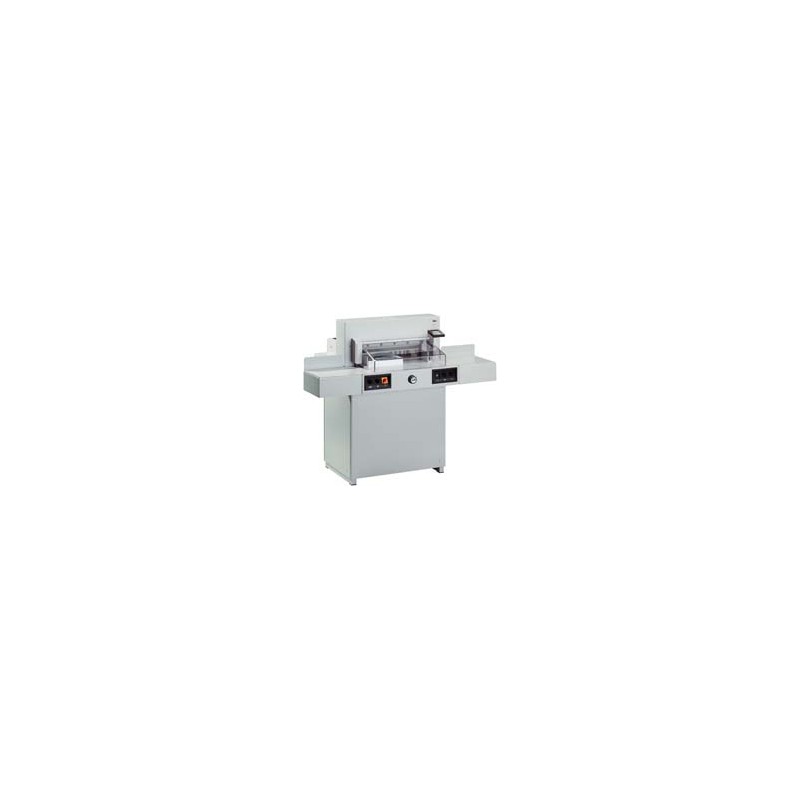

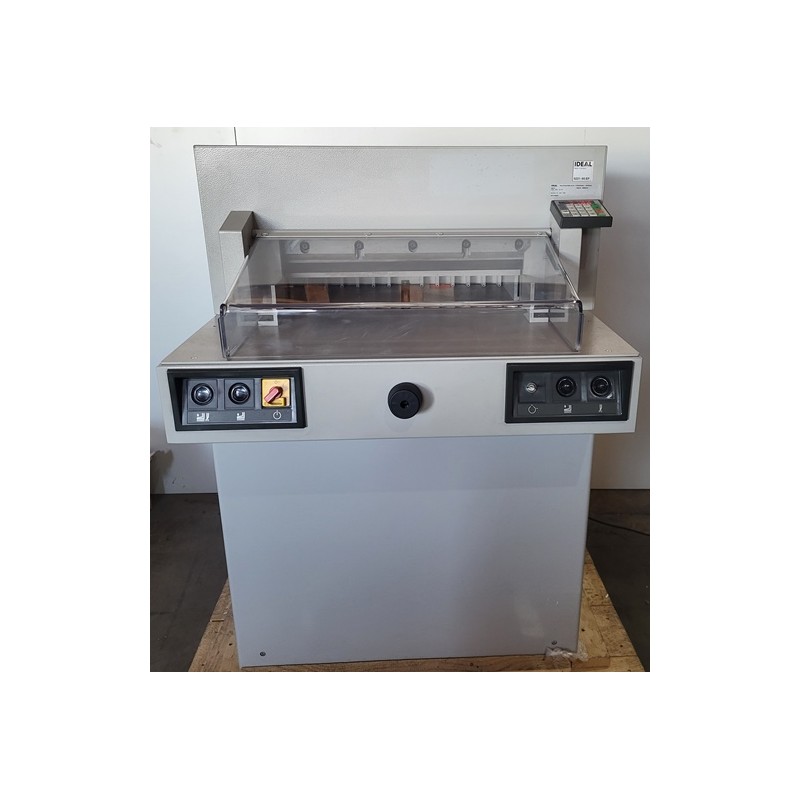

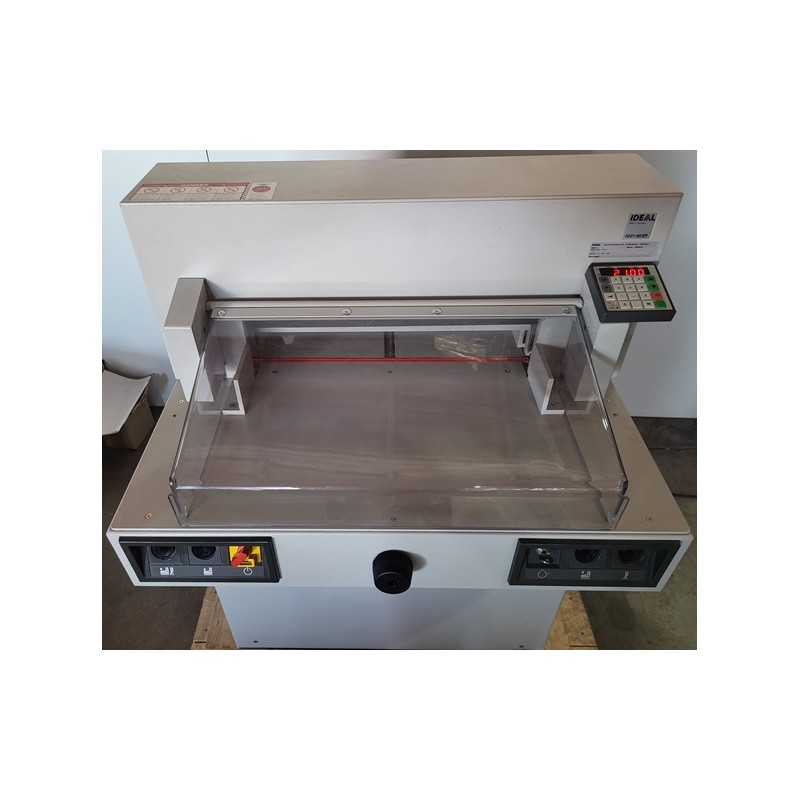

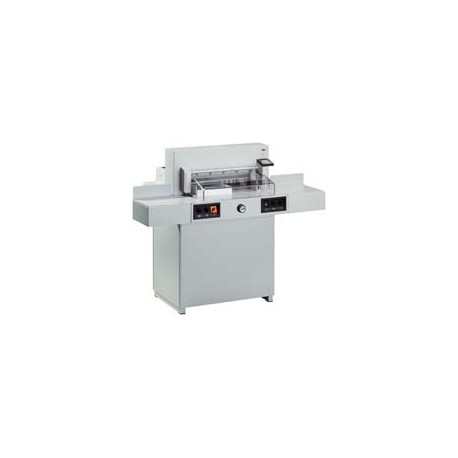

IDEAL 5221 95EP Guillotine

IDEAL 5221 95EP PROGRAMMABLE GUILLOTINE

• Cutting length 520 mm.
• Cutting capacity 80 mm.
• Table depth 520 mm.
• Narrow cut 35 mm.
• Equipped with EASY-CUT, a new patented system for activating the blade with two hands for safe and comfortable operation.
• The ergonomic working height of 94 cm guarantees effortless operation.
• Particularly safe thanks to the “SCS” Safety System (Safety Cutting System): Electronically controlled swing-out safety cover on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled involvement of both hands; 24 volt (low voltage) controls; IDEAL patented safety mechanism; automatic retraction of the blade and clamp from any position; disc brake for immediate blade stop; blade change device with edge protection; blade depth adjustment from outside the machine; Easy blade change from the front of the machine without having to remove the covers; easy turning and/or changing of the square.
• Electric back square with programmable control module.
• Digital reading of measurements in cm or inches (presentation corresponding to 1/10 mm or 1/100 inch).
• 10-button keypad for preselecting measurements.
• Memory for repeat cuts.
• 9 programs with 9 steps each.
• The program runs automatically with electronic control of the cut in program mode and cutting memory.
• Programmable “EJECT” function for removing the paper.
• “SET” function for choosing the reference measurement.
• Self-analysis system with visual error indicator.
• Electronic rotary control with multiple speeds (from very slow to very fast) for manual programming of the back square.
• Electromechanical drive of the blade and clamp.
• Optical cutting line.
• Adjustable back square with small gaps and plastic sliders.
• Two side stops at the front and back of the table.
• Resharpenable blade made of high-quality steel.
• Solid steel blade holder and adjustable guides.
• Solid all-metal construction.
• Including table with tray, practical tool holder and paper alignment block.
• Available with side tables (optional).
• Quality “MADE IN GERMANY”.
• Voltage: 230 V / 50 Hz / 1 (other voltages available) Motor power: 1.1 kW.
• Dimensions, mm H 1293 W 860/1436* D 1120 *With side tables.
• Weight approx. 250 kg./ 261 kg.* *With side tables.
•
