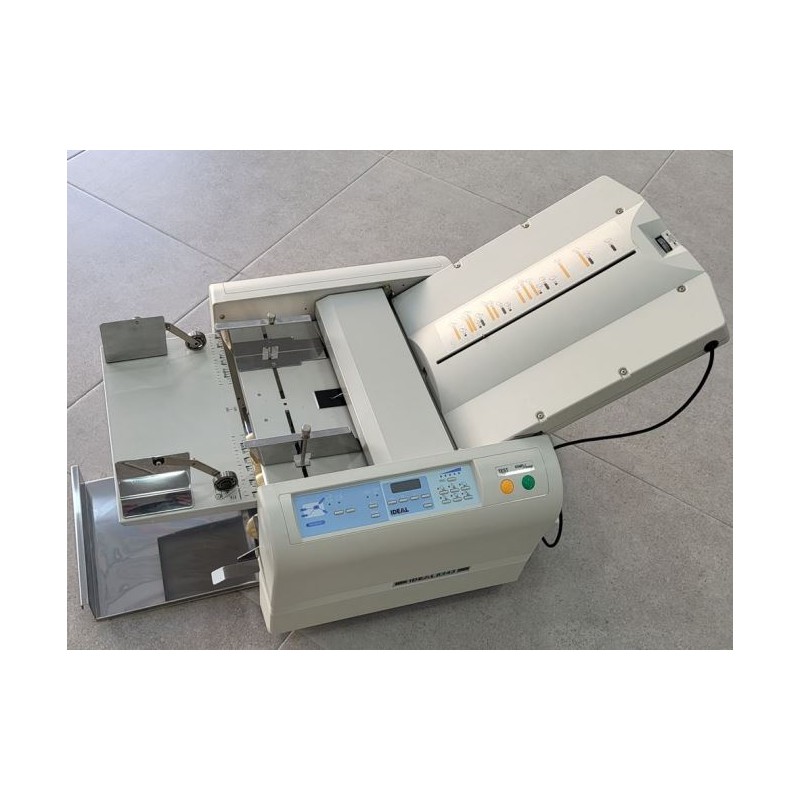

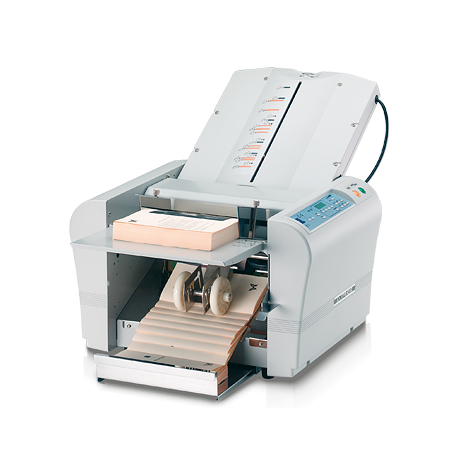

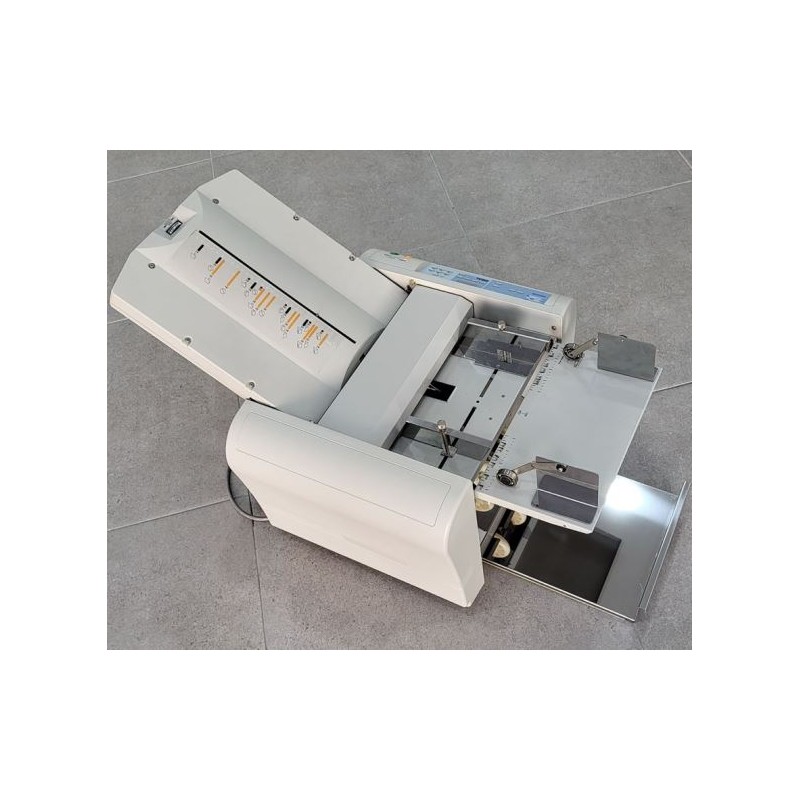

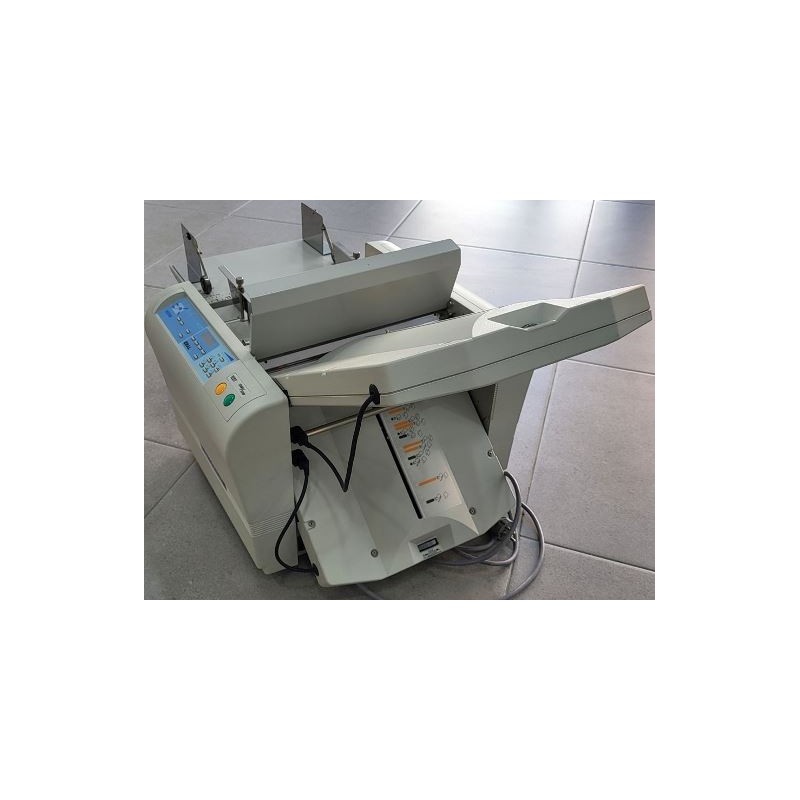

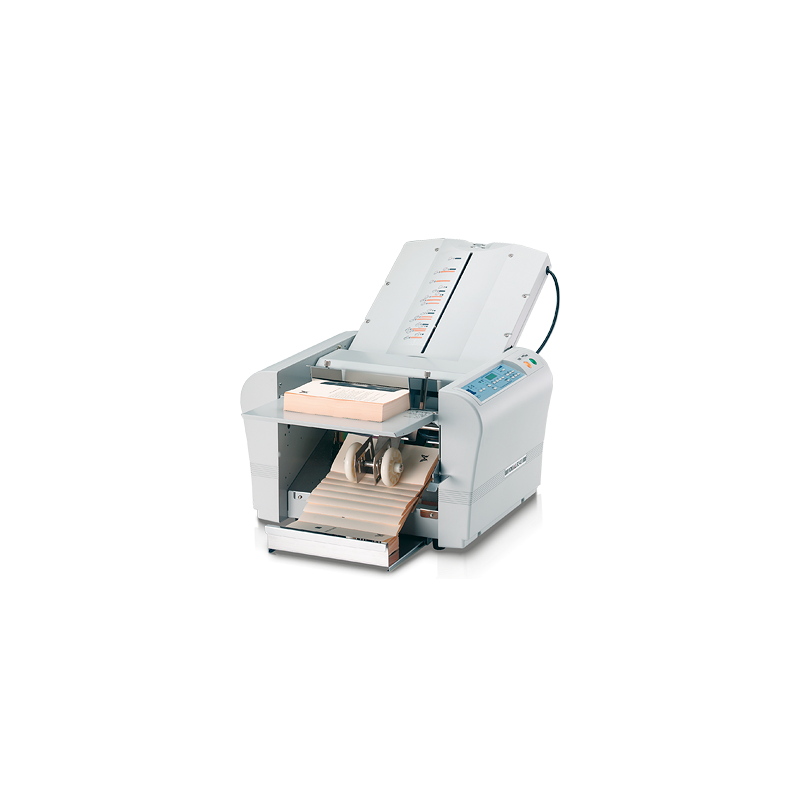

IDEAL 8343 Folder

1293

Used

RECONDITIONED MACHINE

Folder with automatic adjustment of folding measurements. Control panel with digital display and counter, with 6 buttons to choose between different types of folding and adjustable speed. Automatically distinguishes between 6 different paper formats: A3, B4, A4, B5, A5 and B6. Automatic exit by conveyor belt.

More details

1 Item

3 432,00 €

Renting:

82,21 € /month

Ask for

IDEAL 8343 FOLDER

  • Automatic friction folder with memory for 6 folding memories for paper sizes up to DIN-A3.

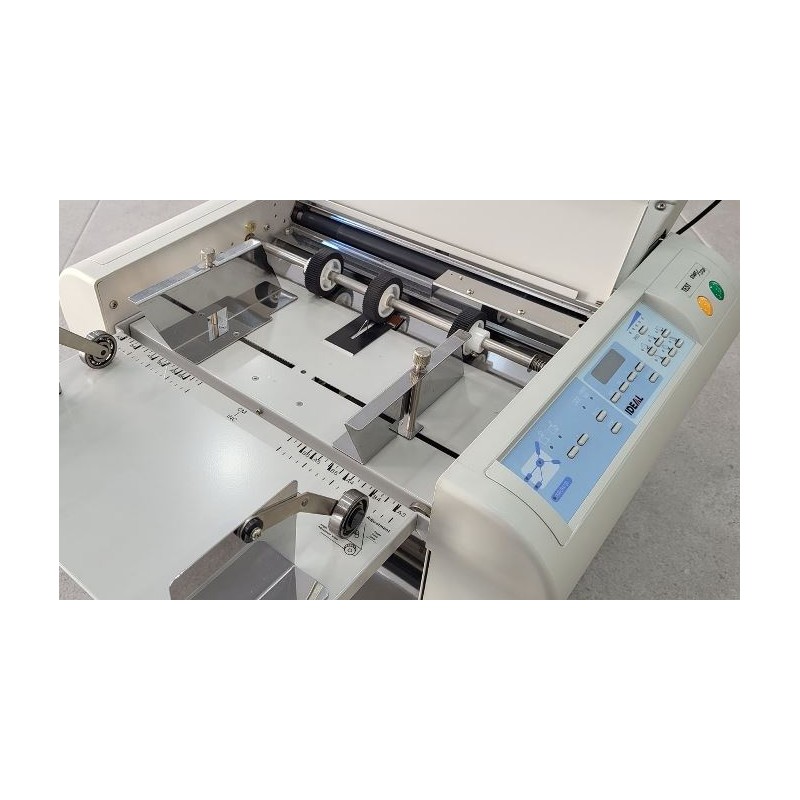

  • Easy adjustment through the control panel with digital display, with 6 buttons to choose between different types of folds and with adjustable speed.
  • Automatically distinguishes between 6 different paper formats: A3, B4, A4, B5, A5 and B6.
  • The feeder tray has a capacity of 500 sheets and two side guides
  • adjustable according to the paper format.
  • It has a feeding system with three rollers and automatic output via conveyor belt with 3 manually adjustable collection positions.
  • LED digital display with 4-digit counter to add (total counter) or subtract (preset counter) and indicate errors.
  • Automatic stop with sound signal at the end of the task or in case of error detection.
  • Minimum paper format: 91 x 128 mm.
  • Maximum paper format: 297 x 420 mm.
  • Speed 8,000 / h (A4 simple folding)
  • Paper weight 45-160 / 230 gr. (Simple folding)
  • Variable speed up to 10,000 cycles per hour.
  • Automatic adjustment of folding measurements
  • Multiple folding types: Diptych, triptych, Z, double parallel and window.
  • Voltage 220-240 V/ 50 Hz.
  • Operating dimensions (h x w x d) 520 x870 x 530 mm.
  • Dimensions at rest (h x w x d) 520 x 660 x 530 mm.
  • Weight 34 Kg.

ORIGIN OF THE EQUIPMENT:

Machine from our installed base.

EQUIPMENT STATUS:

Completely revised equipment, the exterior appearance is correct with some small scratches from use.

WORKLOAD:

It can withstand normal workload.

WARRANTY:

The equipment has a 6-month warranty against all manufacturing defects.
The warranty period begins with the same date of the sales invoice.
The warranty covers the labor and parts necessary for the proper functioning of the equipment.
The warranty does not cover wearing parts and consumables.

INSTALLATION:

The Ideal 8343 is self-installable by the user. The operation is intuitive and the user has online help from our technical service.

At Ofiocasión we have specialized technicians who can install the equipment in your office or workplace and provide a training course for users.
