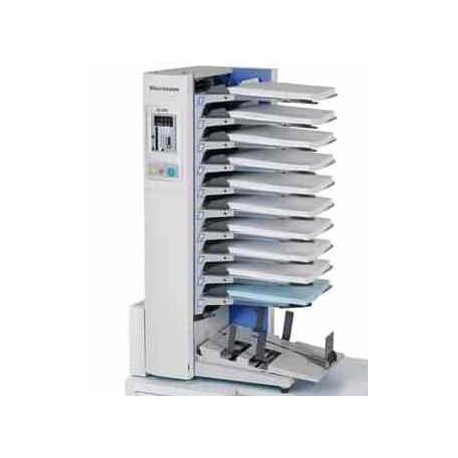

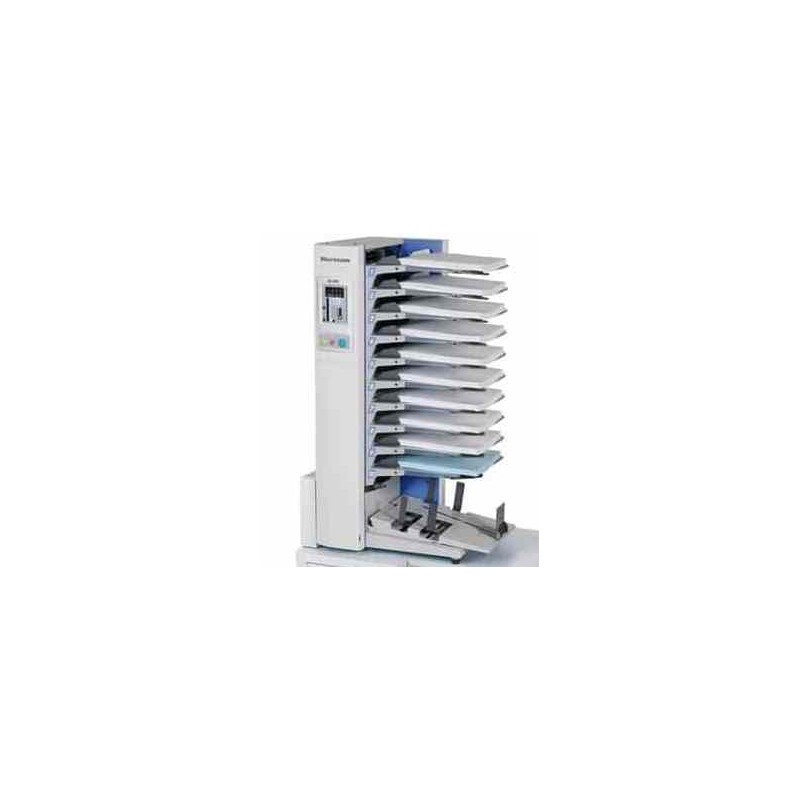

HORIZON QCS300 Collator
1264
Used
RECONDITIONED MACHINE
10 friction feed stations. Speed 3900 cycles/hour. Maximum paper size 320 x 432 mm. Paper weight 53 - 130 gr. Counter. Power failure detection. Double feeding detection. Jam detection. Tray full detection. Touch and color screen.
1 Item
HORIZON QSC300 COLLATOR
- The high-quality QC-S300 desktop collator can be expanded up to a 3-tower system.
- To form a highly productive 30-station grading system. A high quality brochure creation.
- A system can also be added to expand your print finishing capabilities.
- The QC-S300 is equipped with a 5.7-inch color LCD touch screen. Check, start and stop buttons are located below the touch screen for simple and easy operation.
- The maximum production speed is 65 sets/minute (A4 / 8.5" x 11" ABL). The QC-S300 features additional programming functions to
- efficient matching operations.
- The receiving tray capacity is 75 mm (2.9") maximum, allowing you to sort and stack up to 90 sets of 10 sheets. The operator can select straight or offset stacking.
- The touch screen turns off automatically when the QC-S300 is inactive for a certain period of time.
- Allows cascade power charging. This maximizes efficiency by giving the operator enough time to prepare stock for reloading.
- Allows you to insert up to two documents to separate sets (front and back covers).
- Batch counter
- Number of containers: 10
- Sheet feeding system: friction.
- Sheet size: Maximum: 320 x 432 mm. Minimum: 138 x 175 mm.
- Blade weight range: 52.3 to 129.9 grams.
- Tray stack height: 28 mm.
- 5.7 inch color LCD touch panel.
- Error detector/indicator: Sheet jam, No sheets, Feed error, Double feed, Option error, Tray full and cover open.
- Total Counter / Preset Counter.
- Production speed: Max. 65 sets/min.
- Programs: Double cycle mode, tabbed sheet insertion mode, preset stop.
- Motor: Single-phase 100 V, 50 / 60 Hz 115 V, 60 Hz 230 V, 50 / 60 Hz.
- Machine dimensions: 580 (width) x 529 (depth) x 1030 (height) mm.
- Machine weight: 73 kg.
ORIGIN OF THE EQUIPMENT:
Used machine removed from our installed base due to change to superior equipment.
EQUIPMENT STATUS:
Completely revised collator, the exterior appearance is correct with some small scratches from use.
WORKLOAD:
It can withstand normal workload.
The equipment has a 6-month warranty against all manufacturing defects.
The warranty period begins with the same date of the sales invoice.
The warranty covers the labor and parts necessary for the proper functioning of the equipment.
The warranty does not cover wearing parts and consumables.
Self-installable by the user.
At Ofiocasión we have specialized technicians who can install the equipment in your office or workplace and provide a training course for users.
